Variable Refrigerant Flow (VRF) systems are revolutionizing HVAC design, offering unmatched flexibility, energy efficiency, and comfort for modern buildings. Understanding VRF technology is essential for MEP engineers to meet the growing demand for sustainable and cost-effective heating and cooling solutions.
In this guide, we’ll explore what VRF systems are, how they work, their benefits, and best practices for design, installation, and maintenance. Whether you’re working on a residential complex, a commercial office, or a hospital, this guide will equip you with the knowledge to leverage VRF systems effectively.
Table of Contents
What is a VRF System?

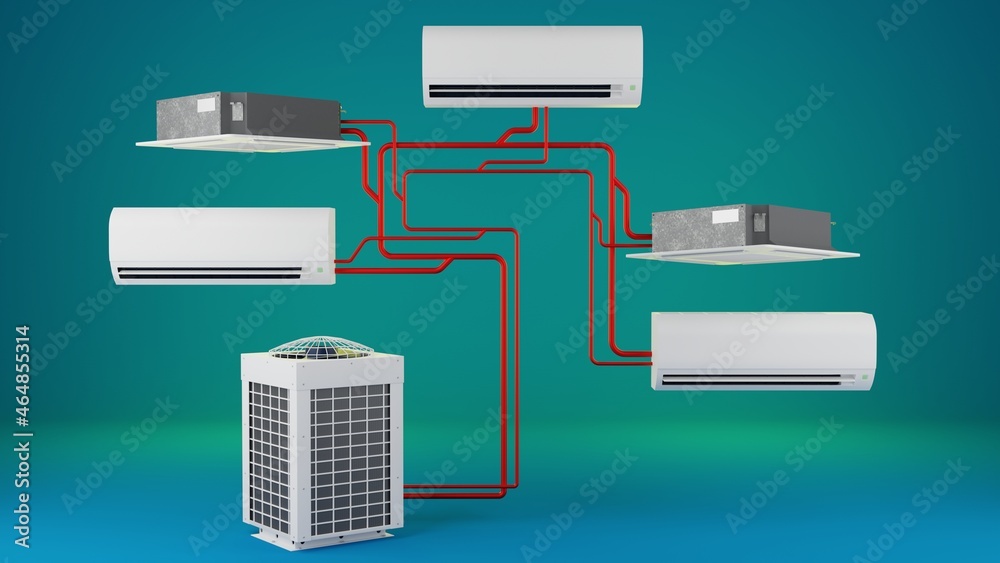

A Variable Refrigerant Flow (VRF) system is an advanced HVAC technology that uses refrigerant as the cooling and heating medium. Unlike traditional systems, VRF systems can vary the flow of refrigerant to individual indoor units, providing precise temperature control and energy efficiency.One Outdoor unit Can control Multiple indoor unit.
Key Components of VRF system:
- Outdoor Unit: Houses the compressor and condenser.
- Indoor Units: Includes fan coils, cassettes, Splits, and ducted units.
- Refrigerant Piping: Connects outdoor and indoor units.
- Control System: Allows zoning and individual temperature control.
How VRF Systems Work
Variable Refrigerant Flow (VRF) systems are advanced HVAC solutions that provide precise temperature control and energy efficiency. But how exactly do they work? Let’s break it down step by step
1. Indoor Units Determine Refrigerant Demand
Each indoor unit (e.g., fan coils, cassettes) in a VRF system acts independently. It continuously monitors the room’s temperature and compares it to the desired temperature set by the user via a remote control or thermostat.
- Example: If the room is 30°C and the user sets the temperature to 24°C, the indoor unit calculates how much refrigerant is needed to achieve the desired cooling.
2. Outdoor Unit Adjusts Refrigerant Flow

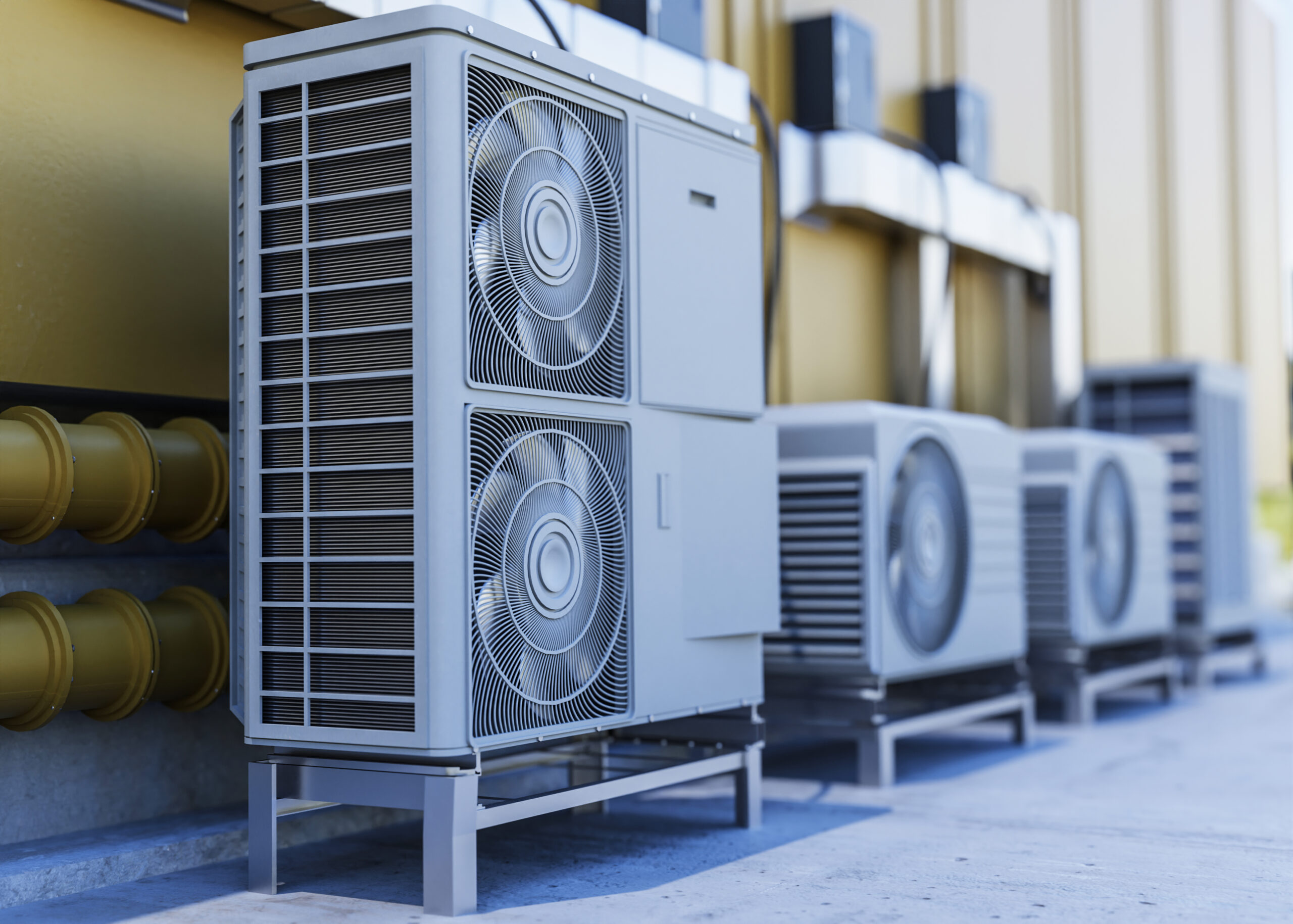

The outdoor unit, which houses the compressor and condenser, receives signals from all indoor units about their refrigerant requirements.
- Key Function: The outdoor unit adjusts the volume and temperature of the refrigerant based on the combined demand from all indoor units.
- Example: If three indoor units need cooling and two need heating, the outdoor unit balances the refrigerant flow to meet both demands simultaneously.
3. Compressor Varies Refrigerant Delivery
The heart of the VRF system is the inverter-driven compressor in the outdoor unit. Unlike traditional HVAC systems, which operate at fixed speeds, the VRF compressor adjusts its speed to deliver the exact amount of refrigerant needed.
- How It Works:
- If demand is high, the compressor speeds up to deliver more refrigerant.
- If demand is low, the compressor slows down to save energy.
- Benefit: This variable speed operation reduces energy consumption and improves system efficiency.
4. Indoor Units Heat or Cool the Space
The refrigerant, now at the required temperature and volume, is sent to the indoor units.
- Cooling Mode: The refrigerant absorbs heat from the room and carries it back to the outdoor unit, where it is released outside.
- Heating Mode: The refrigerant absorbs heat from the outside air (even in cold weather) and releases it inside the room.
5. Heat Recovery in Advanced VRF Systems
Some VRF systems feature heat recovery technology, which allows them to simultaneously heat and cool different zones.
- How It Works:
- Heat extracted from a cooling zone (e.g., a server room) is transferred to a heating zone (e.g., a conference room).
- Benefit: This recycling of heat maximizes energy efficiency and reduces overall energy costs.
Benefits of VRF Systems
1. Energy Efficiency
- Inverter Technology: Compressors adjust speed based on demand, reducing energy consumption.
- Heat Recovery: Recycles waste heat, cutting energy use by up to 30%.
2. Zoning Flexibility
- Each indoor unit operates independently, allowing customized comfort for different zones.
3. Space Savings
- Compact outdoor units and flexible piping reduce space requirements.
4. Quiet Operation
- Advanced noise reduction technology ensures minimal disruption.
5. Sustainability
- Uses eco-friendly refrigerants (e.g., R-410A, R-32).
Designing VRF Systems: Best Practices
1. Load Calculation
- Use Manual J or HAP (Hourly Analysis Program) to calculate heating and cooling loads.
- Example: A 10,000 sq. ft. office requires 50 tons of cooling capacity.
2. Zoning Strategy
- Group areas with similar usage patterns (e.g., offices, meeting rooms).
- Use heat recovery systems for zones with simultaneous heating and cooling needs.
3. Refrigerant Piping Design
- Follow manufacturer guidelines for pipe sizing and length.
- Example: Daikin recommends a maximum piping length of 1,000 meters.
4. Control Systems
- Integrate with BMS (Building Management Systems) for centralized control.
- Use smart thermostats for individual zone management.
Installation and Commissioning
1. Pre-Installation Checks
- Verify load calculations and zoning plans.
- Ensure proper spacing for outdoor units.
2. Piping Installation
- Use nitrogen purging to prevent contamination.
- Perform pressure tests to check for leaks.
3. Commissioning
- Test all indoor and outdoor units.
- Calibrate control systems for optimal performance.

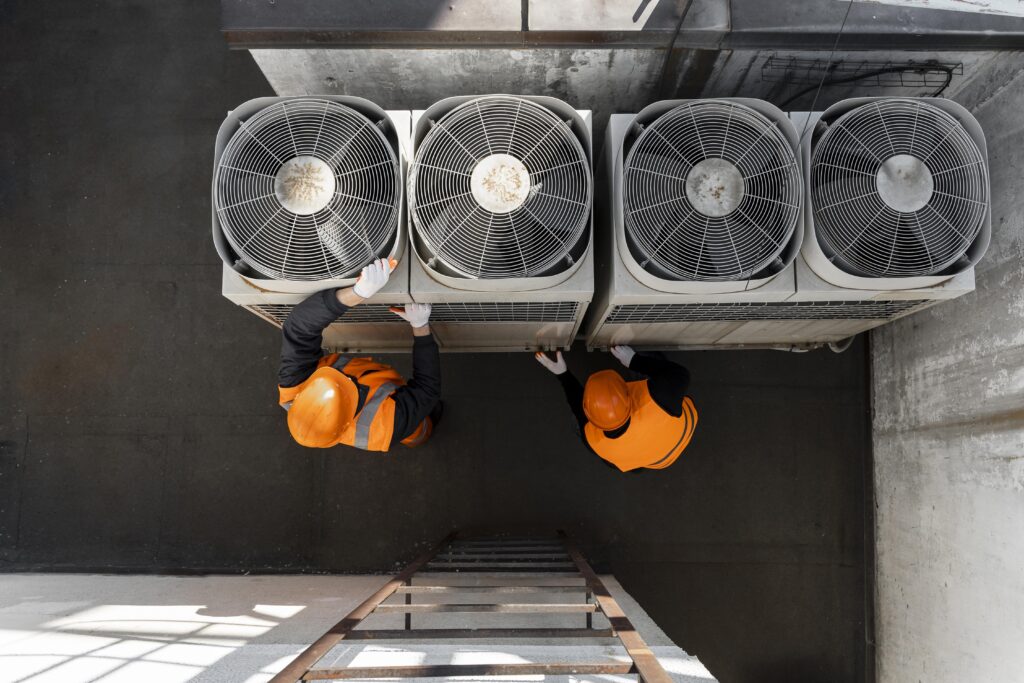

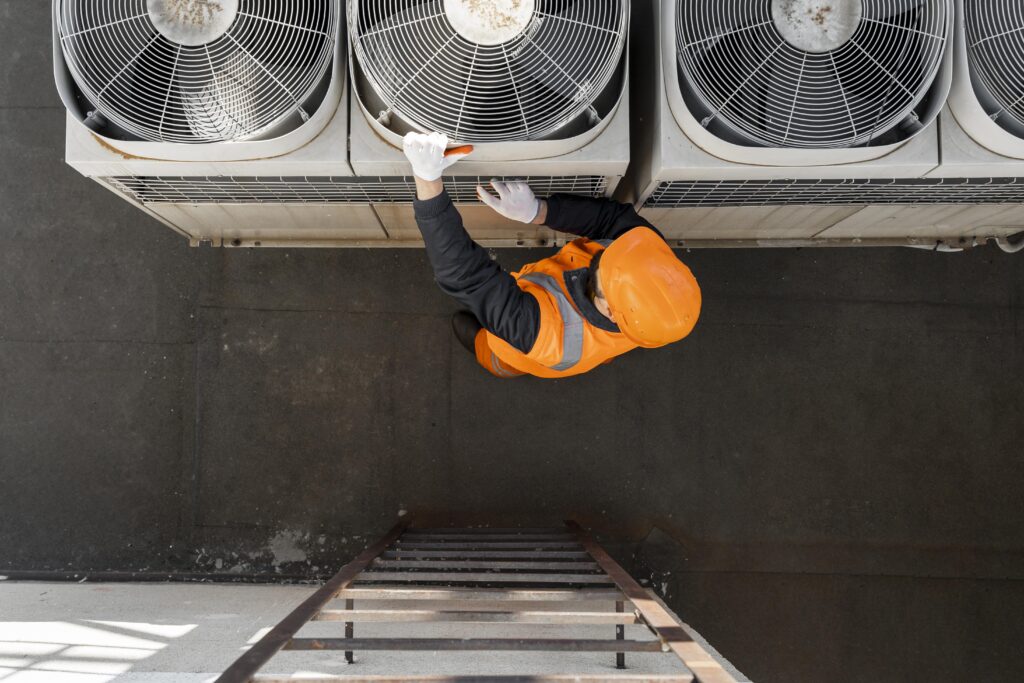

Maintenance Tips
1. Regular Inspections
- Check refrigerant levels and piping for leaks.
- Clean filters and coils to maintain efficiency.
2. Software Updates
- Update control system firmware for improved functionality.
3. Professional Servicing
- Schedule annual maintenance with certified technicians.
Common Mistakes to Avoid
- Undersized Systems: Leads to inadequate cooling/heating.
- Improper Zoning: Reduces energy efficiency and comfort.
- Ignoring Maintenance: Increases energy consumption and repair costs.
Tools for VRF System Design
- Revit MEP: For 3D modeling and clash detection.
- HAP: For load calculations and energy analysis.
- Manufacturer Software: Daikin’s VRF Selection Software or Mitsubishi’s M-Series Tool.
Future Trends in VRF Technology
- AI Integration: Predictive maintenance and energy optimization.
- IoT Connectivity: Real-time monitoring via smart devices.
- Advanced Refrigerants: Lower GWP (Global Warming Potential) options.
Conclusion
VRF systems are a game-changer for MEP engineers, offering unparalleled energy efficiency, flexibility, and comfort. By following the best practices outlined in this guide, you can design, install, and maintain VRF systems that meet the demands of modern buildings.
